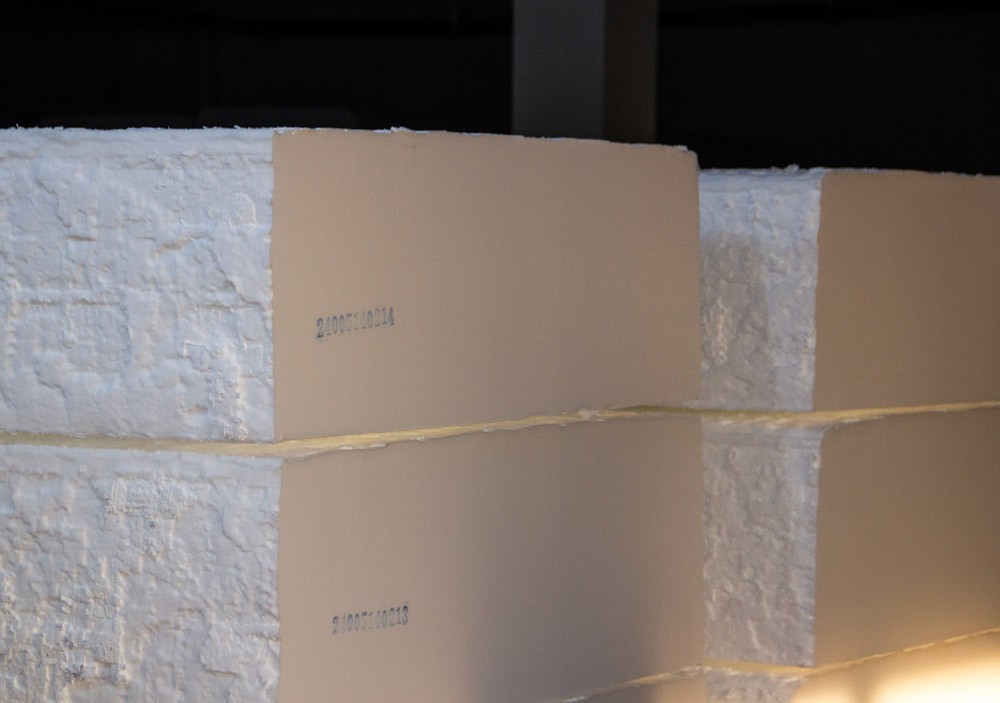

Melacoustic®FT5 Melamine Foam

Melacoustic® FT5 melamine foam is a lightweight porous material with a density of 5.5KG±1.5, featuring an open porosity rate exceeding 99.4%. It possesses inherent flame retardancy and excellent properties such as sound absorption, noise reduction, thermal insulation, cushioning, shock absorption, and environmental safety. Its extremely low density makes it widely used in aerospace for thermal and acoustic insulation, in rail transportation for cold-proofing materials, and in interior decoration and battery insulation for new energy vehicles.

Melacoustic® FT5 Melamine Foam

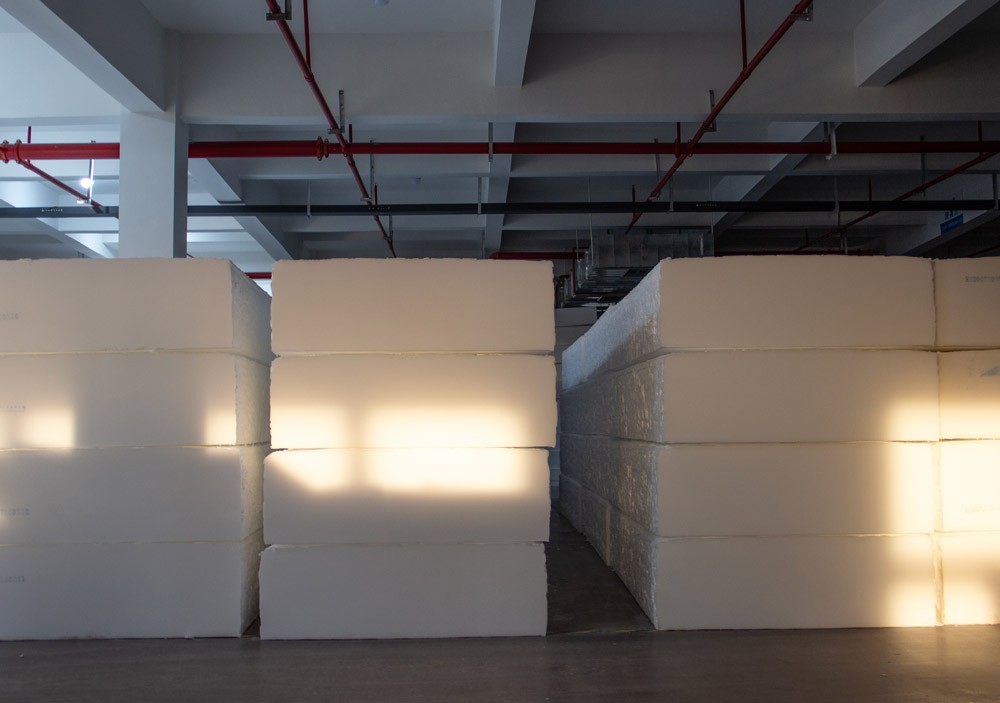

滚动图
滚动图

Custom Inquiry

Name:
Company
Mailbox:
Phone:

Product Parameters

General properties

Flame Retardant
ASTM-E84  A-level
UL94●  v0
GB/T8624  B1
EN45545  HL3
Noise Reduction Coefficient
20mm  0.65
30mm●  0.75
40mm  0.8
50mm●  0.9
80mm●  0.95
Environmental
ROHS  Meets
REACH●  Meets
GB/T3139  Meets
Thermal Conductivity
GB/T10295  ≤0.034

Physical Properties

Model
FT5
DensityKG/m³  5±1
Thicknessmm  1~400
Tensile strengthKPa  ≥110
Elongation at break%  ≥15
Hardness/  30~50
Resilience%  ≥50
Thermal resistance  (-240℃—220℃)

Recommended Size

Standard sizesRecommended colors
1250*500mm  White
1250*1250mm  Grey
2500*1250mm
* Custom sizes
